The digitally produced 3-D images featured on this page are the brilliant work of Eddie Nazif of Denver Mechanical Designs. Our heartfelt thanks to Eddie for all his hard work! To reduce download time, the images were reduced in size and quality from Eddie's original versions, which are part of a complete set depicting every part of the gun. It's our hope that the selected sampling presented here will help to clarify some of the more challenging aspects of the project. |
|
Box Cam, 48-08 |
Carrier Block, 48-01
|
|
Recoil Plate, 48-12
|
Bolt, 48-21 |
|

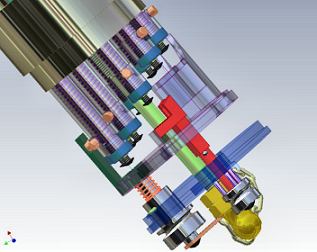

Cocking Switch Disengaged |
Cocking Switch Engaged |
|
We hope you've enjoyed these images! If you're interested in obtaining a CD containing the complete set of 158 full-sized, high-resolution images, depicting all parts and assemblies of the gun (including the carriage!), please send $25.95 USD for domestic US orders. Credit cards, money orders, or checks accepted. For overseas orders, please include an additional fee of $5.00 USD. |
